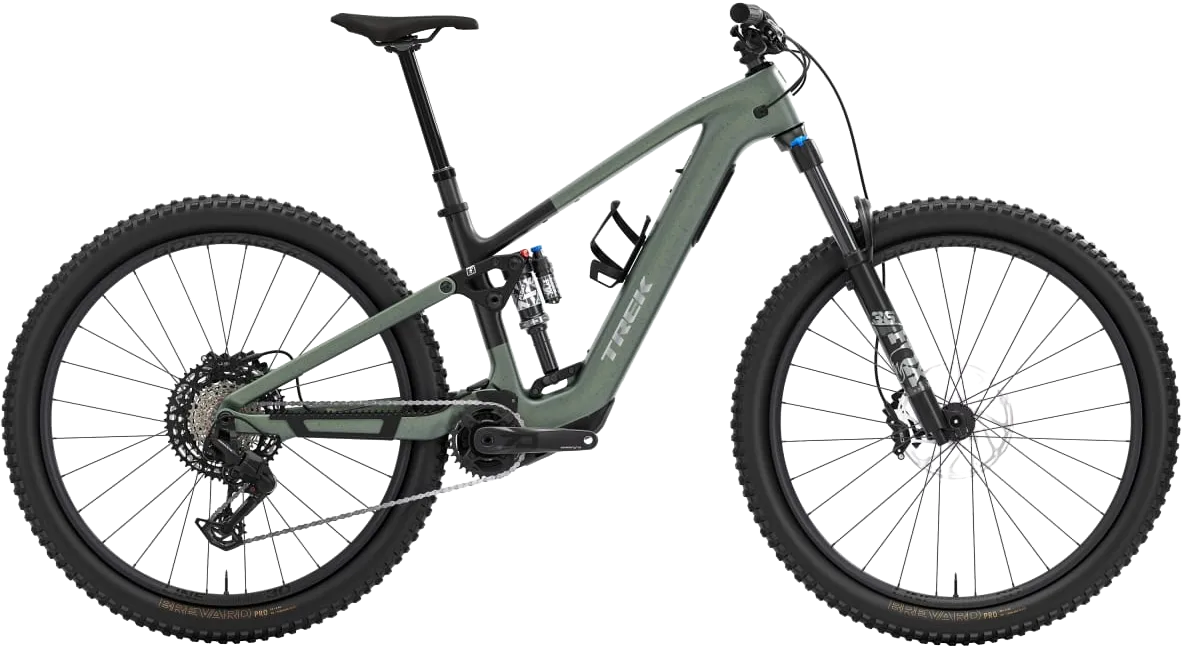

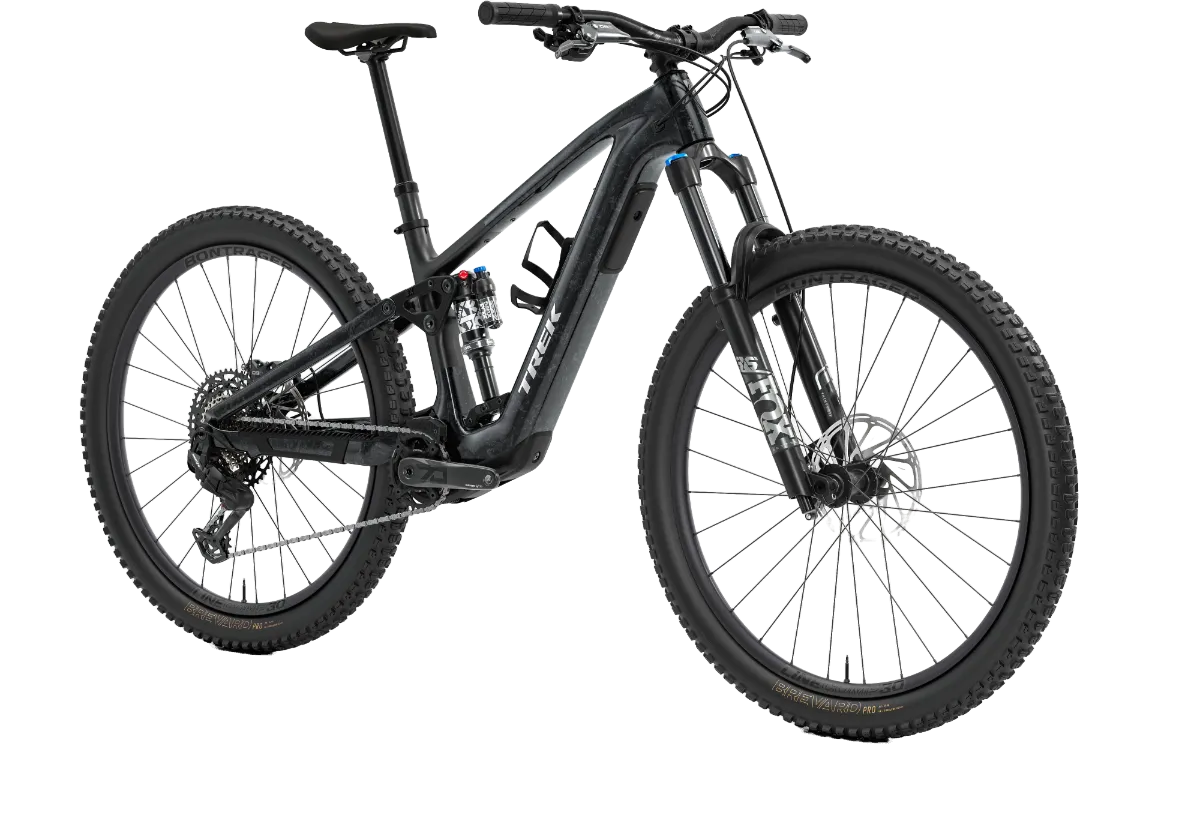

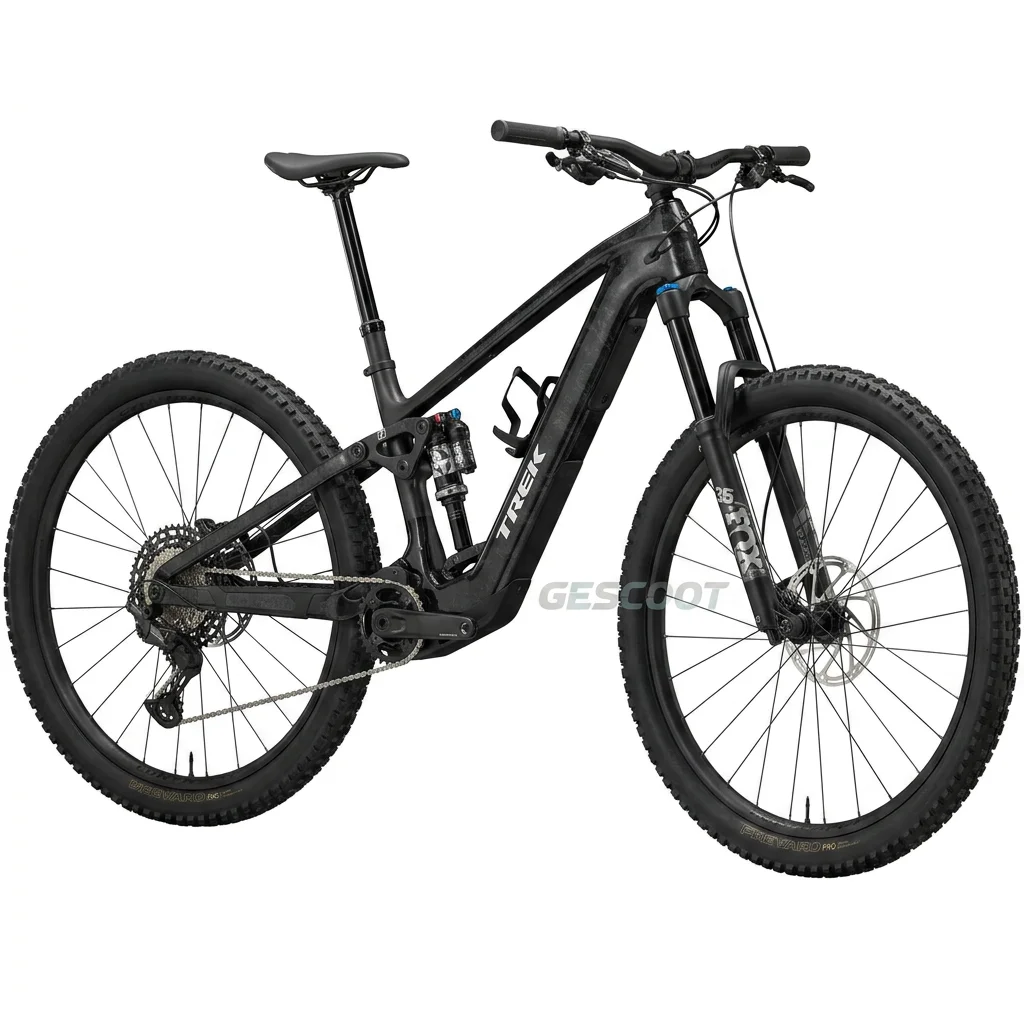

Trek Fuel+ EX 9.7 Electric Bike
Product Overview
The Trek Fuel+ EX 9.7 Gen 2 is a lightweight carbon fiber electric mountain bike designed for trail and all-mountain riding. It bridges the gap between a traditional mountain bike and a full-power e-MTB by utilizing the quiet and natural-feeling TQ HPR60 motor. Built around an OCLV Mountain Carbon frame, it features 150mm of front travel and 145mm of rear travel, making it capable on challenging descents while maintaining a playful, "acoustic-bike-like" handling feel. The bike is designed for riders who want a subtle power boost for long climbs without sacrificing the agility required on technical singletrack.
Key Features
Lightweight & Quiet Motor: Powered by the TQ HPR60 harmonic pin ring transmission, offering 60Nm of torque and 300W of max power. It is known for being exceptionally quiet and providing a smooth, natural torque curve that feels like an extension of the rider.
OCLV Mountain Carbon Frame: High-quality carbon fiber frame designed to be both lightweight and durable. Features include internal cable routing, a removable 580Wh battery, and a shuttle guard to protect against damage from bike racks.
Adjustable Geometry (Mino Link): The bike features an adjustable leverage rate via a flip chip on the lower shock mount. This allows riders to change the suspension progression and bottom-out resistance based on preference or terrain.

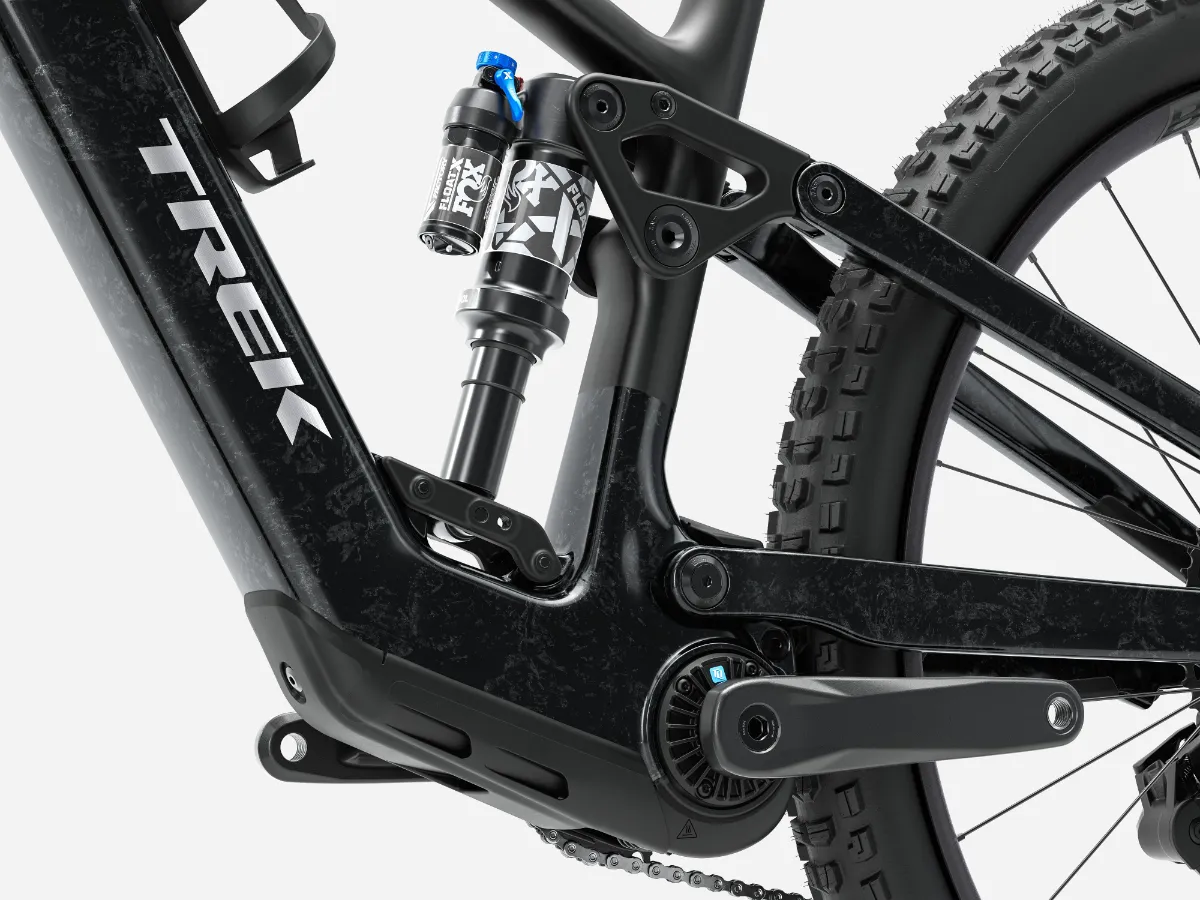

High-Performance Suspension: Equipped with a Fox Rhythm 36 fork (150mm) and a Fox Performance Float X rear shock (145mm), providing a balanced and tunable suspension setup for rough trails.
SRAM Eagle T-Type Transmission: Features the new SRAM Eagle T-Type (Transmission) drivetrain, which mounts directly to the frame (UDH interface) to eliminate vulnerable derailleur hangers, resulting in cleaner, more precise shifting under load.
Complete Product Overview
The Trek Fuel+ EX 9.7 is a Trek electric bike offered by Gescoot as a 100% original product, sourced through official channels and supplied exactly as specified by the manufacturer. The sections below set out its verified specifications so you can compare it with confidence and choose the model that fits your riding needs.
Performance & Power
The Trek Fuel+ EX 9.7 delivers its performance through the drive system detailed below. These figures are the manufacturer's rated values; actual results vary with rider weight, terrain, temperature, and riding style.
Motor: TQ-HPR60, 60Nm torque, 300W rated power (350W peak)
Battery, Range & Charging
Battery capacity and charging time determine how far and how often you can ride. The stated range is measured under the manufacturer's test conditions; real-world range depends on speed, load, assist level, and weather.
Battery: TQ 580Wh (integrated, removable)
Ride Comfort & Safety
Tires, suspension, brakes, and lighting together shape how the Trek Fuel+ EX 9.7 handles everyday roads and how visible and in control you remain. Always ride within local regulations and wear appropriate protective equipment.
Tires: Bontrager Brevard Pro XR, Tubeless Ready, 29"x2.50"
Front Fork: Fox Rhythm 36, Float EVOL air spring, GRIP damper, 150mm travel
Rear Shock: Fox Performance Float X, 2-position damper, 205x60mm
Brakes: SRAM DB 8 4-piston hydraulic disc (200mm rotors front/rear)
Drivetrain & Components

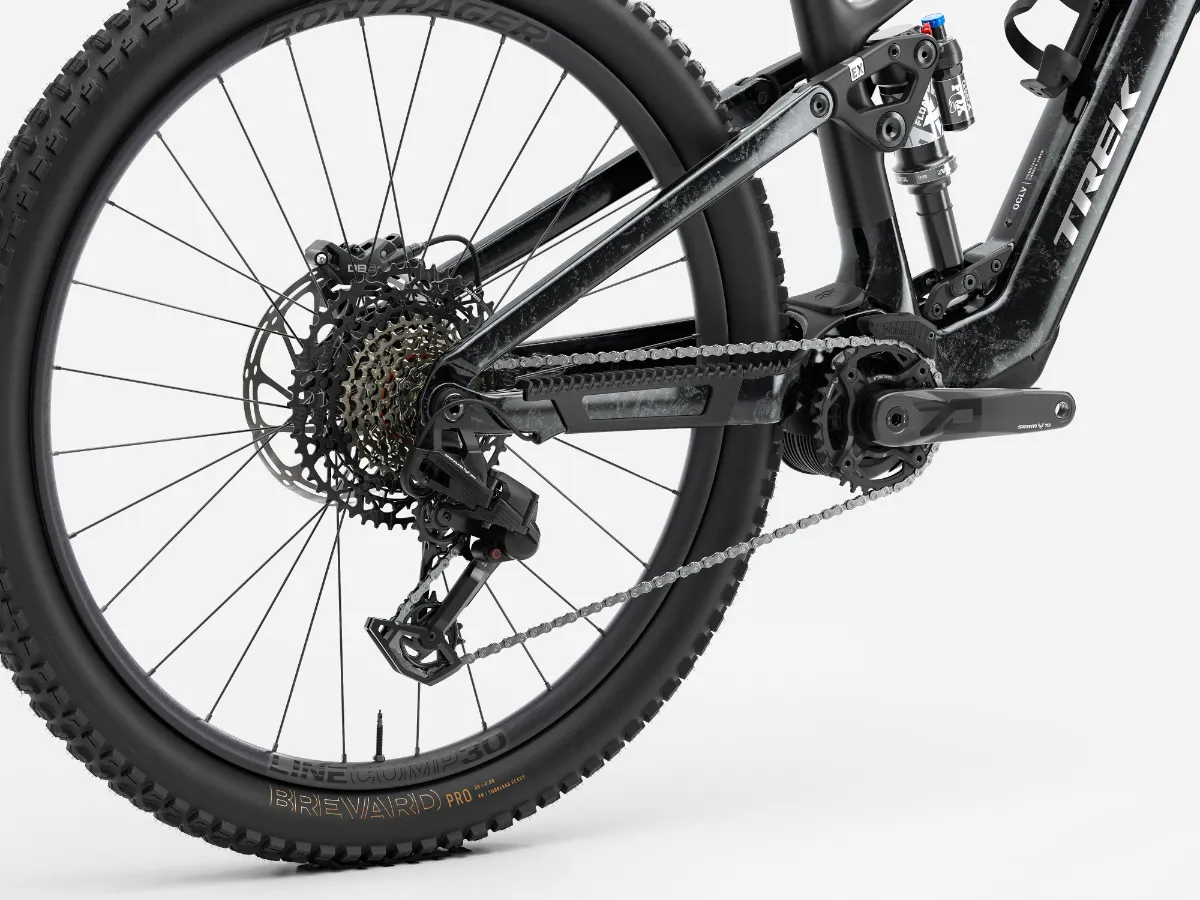

Drivetrain: SRAM Eagle 70, T-Type, 12-speed (Cassette: 10-52T)
Build, Capacity & Dimensions
Frame construction, weight, and load capacity indicate how the Trek Fuel+ EX 9.7 suits your daily routine, storage space, and carrying needs.
Frame: OCLV Mountain Carbon, 145mm travel (adjustable to 160mm), Boost148, UDH
Weight: Approx. 19.73 kg (43.5 lbs) for size M
Additional Specifications
Cockpit: Race Face Turbine handlebar (780mm), Bontrager Elite stem (45mm)
Seatpost: Bontrager Line Dropper (Travel: 150mm S, 170mm M, 200mm L/XL/XXL)
System Weight Limit: 136 kg (300 lbs) including rider and cargo
